PVC resin

Polyvinyl Chloride(PVC)
Polyvinyl Chloride(PVC)

聚氯乙烯(PVC


产品简介

聚氯乙烯(PVC)是以氯乙烯单体经聚合反应而制得的线型热塑性合成树脂。氯乙烯单体的合成路线按原料不同分为电石路线和石油路线。中国石化聚氯乙烯产品采用日本信越悬浮法聚合工艺和美国西方化学悬浮法聚合工艺制得的。产品具有良好的耐化学腐蚀性、电绝缘性和化学稳定性;由于含氯量高,具有很好的阻燃性和自熄性;产品易于成型加工, 可以采用挤出、注塑、压延、吹塑、压制、铸塑及热成型等多种成型方法进行加工。



产品用途

聚氯乙烯是应用最广泛的热塑性树脂之一,可以制作强度和硬度高的硬质制品如管材、管件、门窗等异型材和包装片材,也可以加入增塑剂制作非常柔软的制品如薄膜、片材、电线电缆、地板、合成革等。





主要生产企业及工艺列表

Manufacturers and Processes



Polyvinyl Chloride (PVC) is a linear thermoplastic resin produced by polymerization of vinyl chloride monomer. Due to the difference of raw materials, there are two methods of synthesizing vinyl chloride monomer - calcium carbide process and petroleum process. Sinopec PVC adopts two suspension process, respectively from Japanese Shin-Etsu Chemical Company and American Oxy Vinyls Company. The product has good chemical corrosion resistance, excellent electrical insulation property and fine chemical stability. With high chlorine content, the material has good fire retardance and self-extinguishing properties. PVC is easy to process by extrusion, injection molding, calendering, blow molding, compressing, cast moulding and thermal molding, etc.

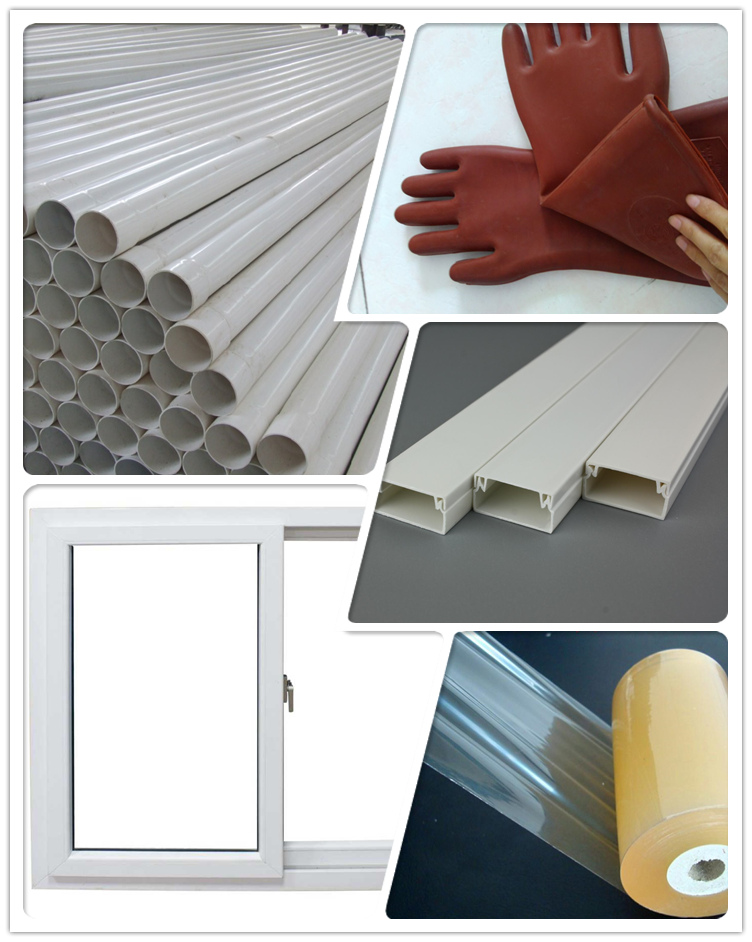

Applications

PVC is one of the most widely used thermoplastic resins. It can be used to make products with high hardness and strength, such as pipes and fittings, profiled doors, windows and packaging sheets.  It can also make soft products, such as films, sheets, electrical wires and cables, floorboards and synthetic leather, by addition of plasticizers.








生产企业

Manufacturer



所在地

Location

产能

(万吨/年) Design Capacity (10,000 Tons/a)



工艺技术

Processes

企业认证

Certifications

质量管理体系

Quality

HSE管理体系

HSE



齐鲁分公司

Qilu Petrochemical



淄博

Zibo

23

日本信越悬浮法聚合工艺

Suspension Process of Japan Shin Etsu Chemical





ISO 9001



GB/T 19001-2000

GB/T 24001-2004

GB/T 28001-2001

37

美国OxyVinyls悬浮法聚合工艺

Suspension Process of US OxyVinyls


产品包装及贮运要求

产品采用牛皮纸涂PP编织物复合袋包装或采用内涂塑PP编织布外袋、LDPE袋包装或散装,小包装净重25Kg/袋、大包装净重1250Kg/袋、1000Kg/袋、600Kg/袋或500Kg/袋。

产品应存放在通风、干燥的仓库内,远离火源,不得露天堆放,防止日晒和受潮。产品运输时必须用洁净有蓬的运输工具,防止雨淋。

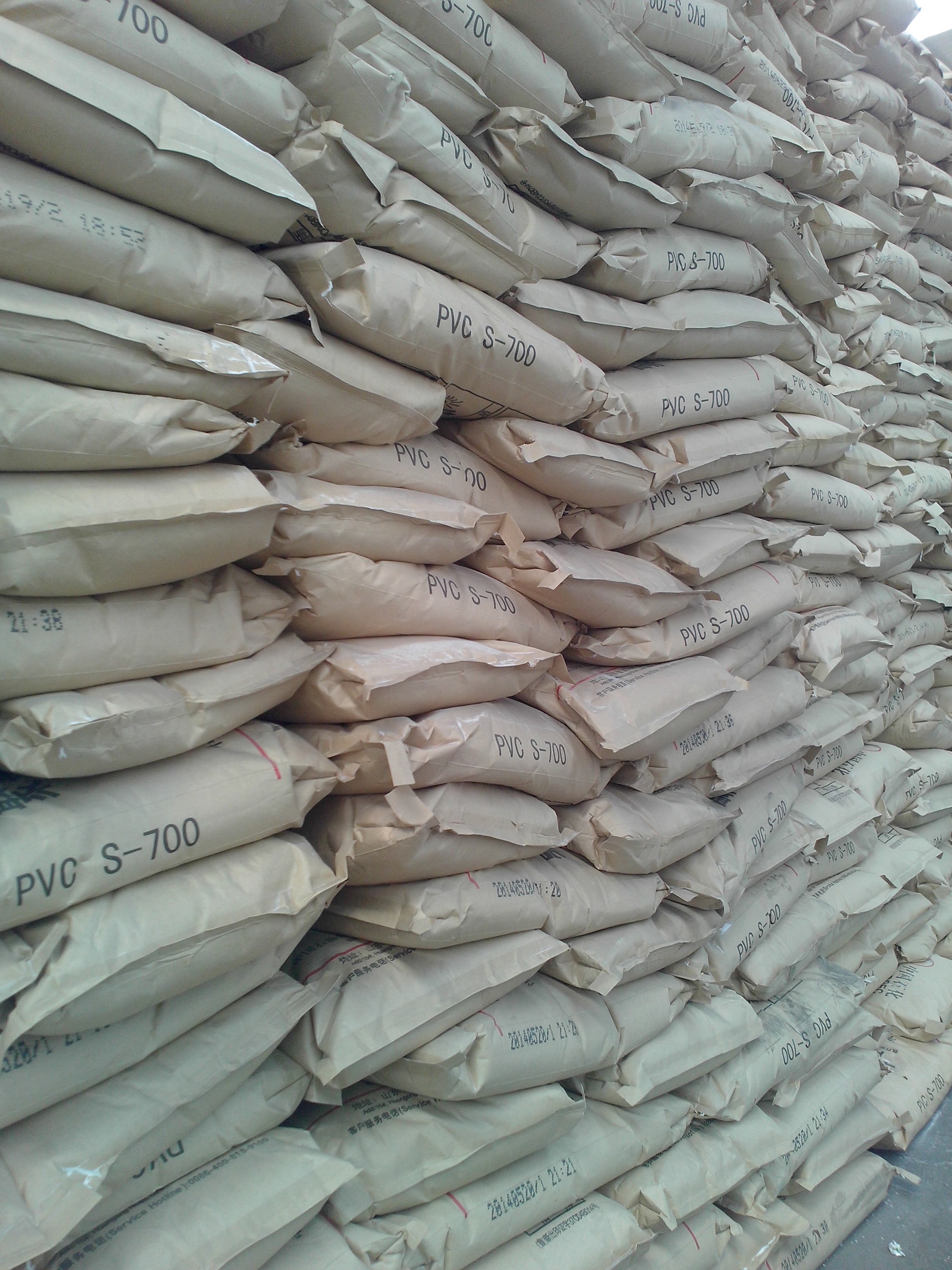

Package, Storage and Transportation

The resin is packaged in compound bags of kraft paper and coated PP woven material, or internally coated PP woven cloth exterior bags with LDPE interior bags, or packaged in bulk. The net weight of small package is 25Kg per bag and that of large package is 1250Kg, 1000Kg, 600Kg or 500Kg per bag.

The resin should be stored in well-ventilated and dry warehouses against fire, sunlight and dampness, and should not be piled up in the open air. Clean and covered transportation vehicles should be used for transportation to prevent from rain.






主要产品牌号性能指标典型值(非保证值)及用途

Grades, Typical Values (Not Warranted Values) and Applications



产品牌号

Grades

QS-650

S-700

QS-800F

平均聚合度

Average Degree of Polymerization

600-700

650-750

600-700

表观密度

Apparent Density

g/ml

0.53-0.60

0.52-0.62

0.53-0.60

挥发物

Volatiles

%≤

0.4

0.3

0.4

100g树脂的增塑剂吸收量

Plasticizer Absorption

of 100g resin



g≥



15



14



15

残留VCM

Residual VCM

mg/kg≤

5

5

5

鱼眼个数

Fish Eyes ,pcs/1520cm2

个/400cm2

30

30

30

筛余物Sieve Residue

0.25mm筛孔

Mesh

%≤

2

2

2

0.063m筛孔

Mesh

%≥

95

95

95

杂质粒子数

Number of Impurity Particles

个≤

20

20

20

白度(160℃,10min后)

Whiteness (160℃,after 10min)

%≥

78

75

78





主要用途

Applications

注塑料、管件、压延料、刚性泡沫型材、楼板材挤出刚性型材Injection Molding Materials, Pipes Materials, Calendering Materials, Rigid Foaming Profiles, Building

Sheet Extrusion Rigid Profile

半硬质片材、板材、地板材料、衬里硬膜、电器零件、汽车零件Half-rigid Sheet, Plates, Floor Materials, Linning Epidural, Parts of Electric Devices, Automotive Parts

挤出型材、电线、电缆料、柔性薄膜和板材

Extrusion Materials, Electric Wires, Cable Materials, Soft Films and Plates

产品认证

Certifications

ROHS

FDA/ROHS

生产企业

Manufacturers

齐鲁

Qilu

齐鲁

Qilu

齐鲁

Qilu

产品牌号

Grades

S-1000

QS-1000F

QS-1050P

平均聚合度

Average Degree of Polymerization

970-1070

950-1050

1000-1100

表观密度

Bulk Density

g/ml

0.48-0.58

≥0.49

0.51-0.57

挥发物

Volatiles

%≤

0.3

0.3

0.3

100g树脂的增塑剂吸收量

Plasticizer Absorption of 100g resin



g≥



20



24



21

残留VCM

Residual VCM

mg/kg≤

5

5

5

鱼眼个数

Fish Eyes ,pcs/1520cm2

个/400cm2

20

20

20

筛余物Sieve Residue

0.25mm筛孔Mesh

%≤

2

2

2

0.063m筛孔

Mesh

%≥

95

95

95

杂质粒子数

Number of Impurity Particles

个≤

16

16

16

白度(160℃,10min后)

Whiteness (160℃,after 10min)

%≥

78

80

80



主要用途

Applications

片材、人造革、管材、型材、波纹

管、电缆保护管、包装薄膜Sheets, Artificial Leathers, Pipes Materials, Profiles, Bellows,  Cable

Protective Pipes, Packaging Films

板材、压延料、管材压膜工具、

电线和电缆绝缘料

Sheets, Calendering Materials, Pipes Calendering Tools, Insulating

Materials of Wires and Cables

灌溉管、饮用水管、泡沫芯管、

污水管、电气穿线管、刚性型材Irrigation Pipes, Drinking Water Tubes, Foam-core Pipes, Sewer

Pipes, Wire Pipes, Rigid Profiles

产品认证

Certifications

ROHS

FDA/ROHS

ROHS

生产企业

Manufacturers

齐鲁

Qilu

齐鲁

Qilu

齐鲁

Qilu
